V-Solar

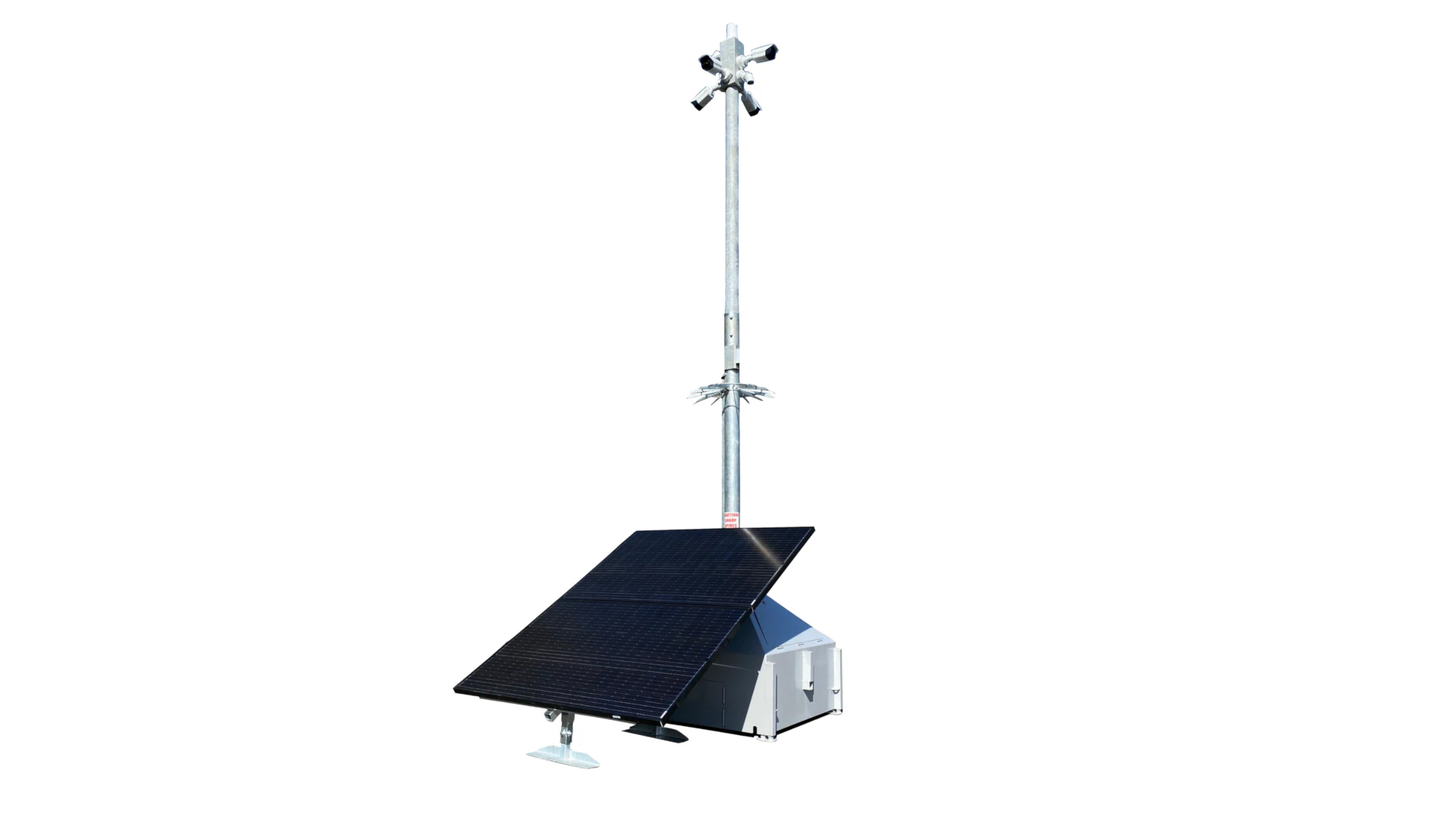

Cost-effective Solar Power - Our best-selling V-Solar 6m towable CCTV tower has been specifically developed and designed as a cost-effective solution for demanding off-grid security applications. This offers a truly reliable, robust and versatile alternative, when mains or generator power are not available.
V-Solar Tower Specification
- 6m tower height when deployed
- Fully towable – mast height reduces to 3.25m for transportation
- Dimensions of tower 1350mm square, add 2m square for solar panel frame and panels (standard double panel set up)
- Base available in any BS RAL Colour
- Tower Livery/ Decals/ Logo/ Graphics/ Chevrons (optional)
- Ground anchor lugs for wire rope fastening to each corner of tower
- Adjustable levelling legs – suitable for uneven ground/ rough terrain
- Batteries (Lithium 100ah) 2 x 13.5kg (approx. total 26kg)
- Solar Bracket Frame & parts approx. 58kg (includes anti-climb)
- Solar panels x 2 approx. 21kg each
- Total weight approx. 520kg (depending on final specification)
- Option to install Spirafix ground anchor for additional hold
- Option to add quad solar panel arrangement for extended Winter use
- *V-Solar Tower operation is sunlight dependent and may require additional methods of power support during Winter months (quad solar panel arrangement available)
*V-Solar Tower can be remotely programmed to switch load off in the daytime during Winter months, to increase battery charging & performance.
Technical
- 4 x Hikvision Analytic Cameras (various) 4MP/ 8MP
- External Audio horn
- 4 x 256gb Micro SD Cards
- 100ah Lithium Batteries
- 4G Field Grade Router & LMO Antenna (Dual Sim)
- Battery Charging System (12v)
- 400watt Solar Panels and bracket (quad panel & bracket arrangement upon request)
- Victron Solar Components
