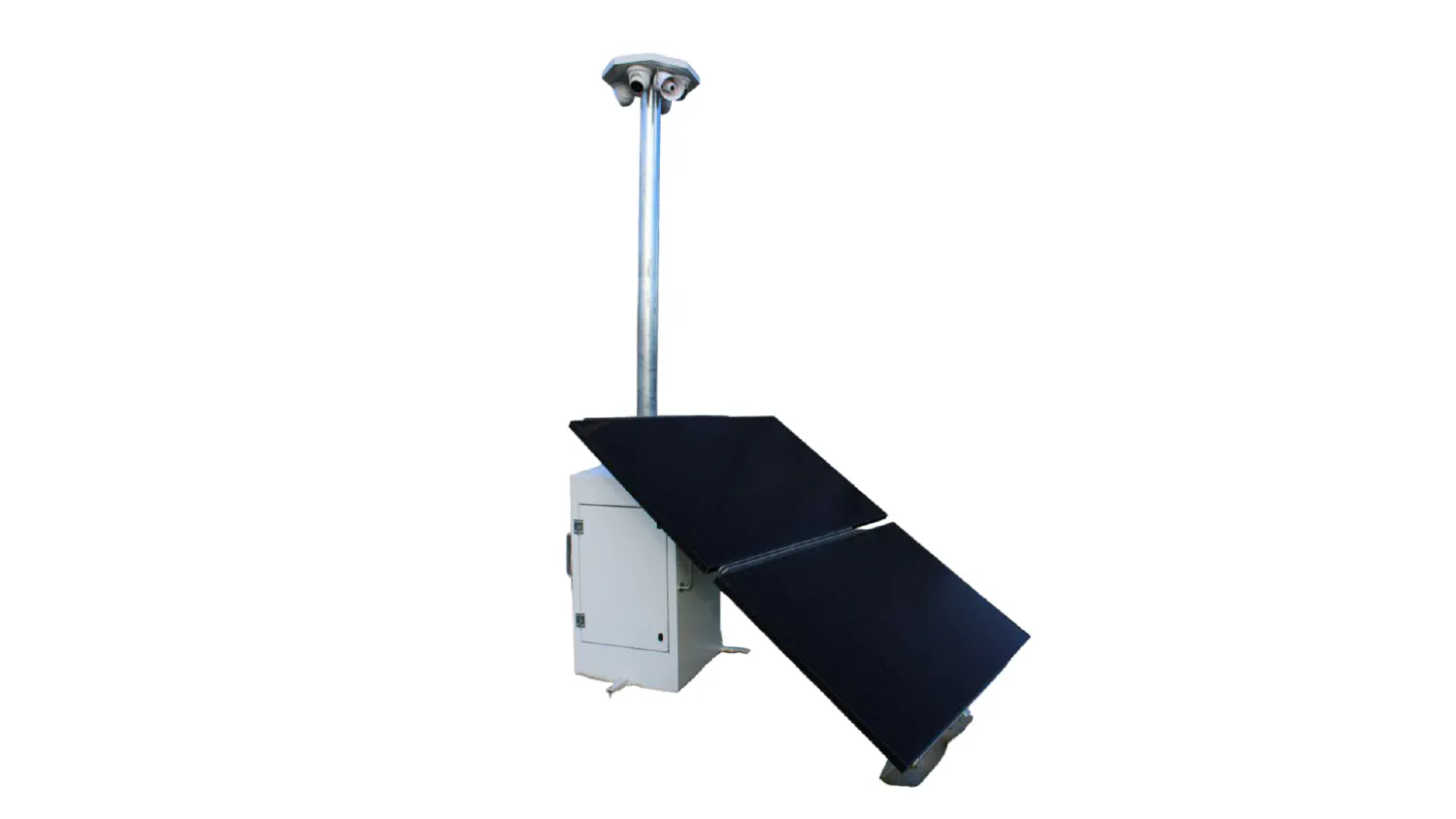

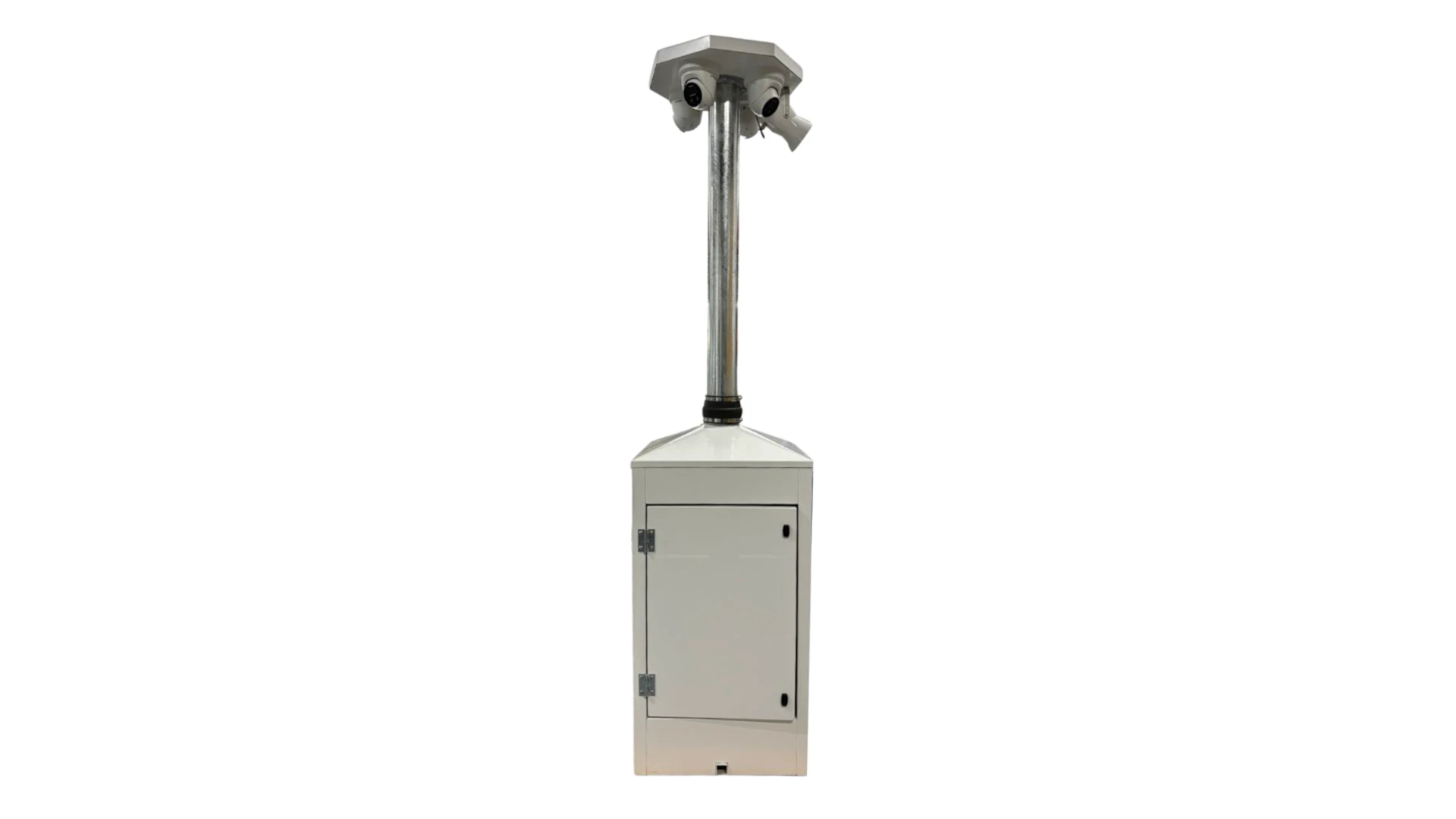

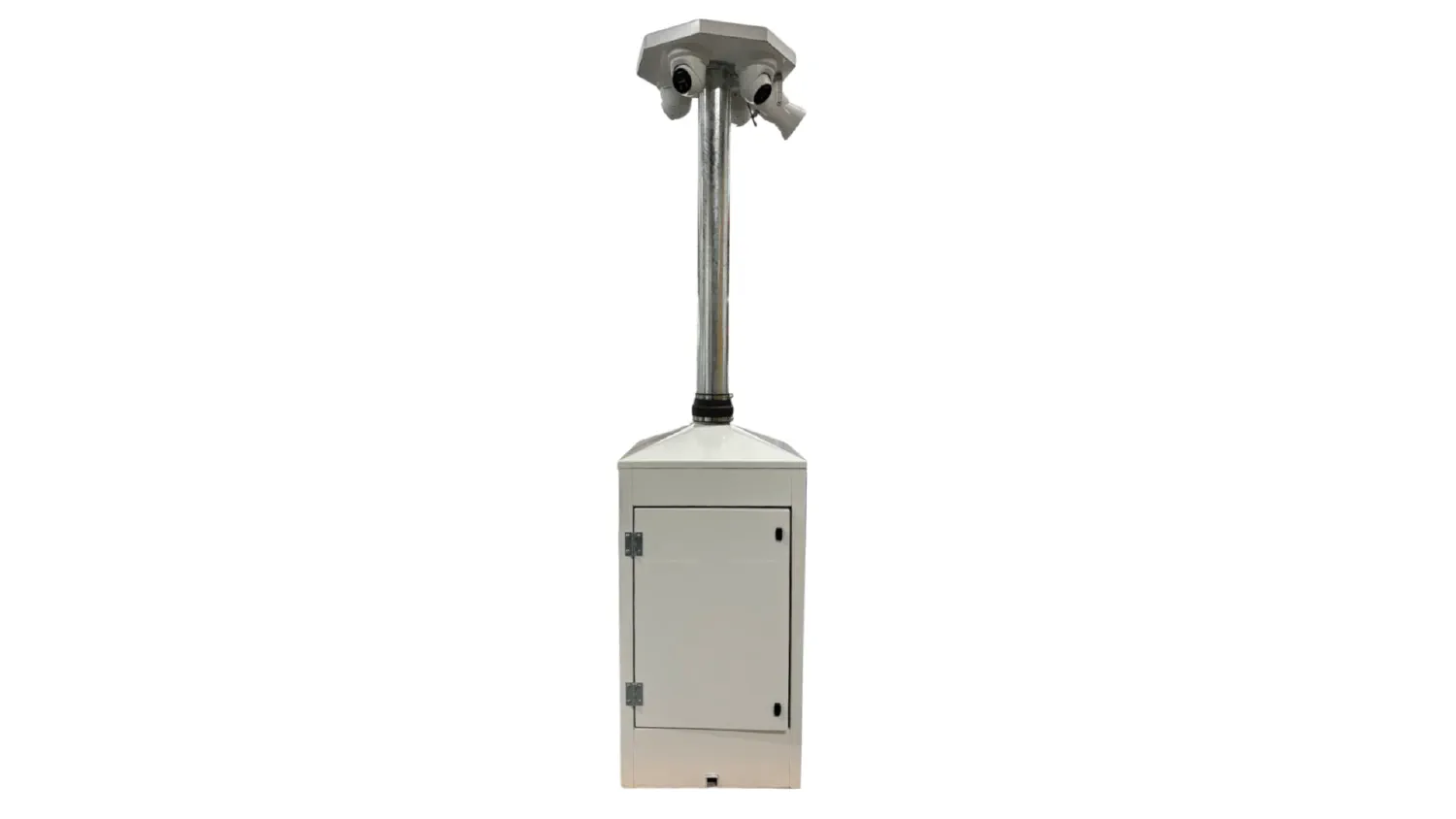

V-Mini / V-Mini Solar
Compact by design - New to the market in 2021, the unique V-Mini/ V-Mini Solar is a user-friendly and compact rapid deployable CCTV tower. Versatile and lightweight enough to fit in any space (indoors or outdoors), the V-Mini Tower is easily manoeuvred into position and designed to be deployed on-site within 15-20 minutes. A great standalone solution, or a fantastic addition to your V-Ceptor fleet.
V-Mini / V-Mini Solar Tower Specification
- Compact by design - collapsible galvanised mast (reduces for transportation)
- Powder Coat finish in RAL9003 White (semi-gloss) as standard
- Available in two different mast heights - 2.3m or 3.4m
- Standard Mast reduced size - 1460mm, full height size - 2350mm
- Extended Mast reduced size - 2400mm, full height size - 3400mm
- Cabinet base approx. 650mm x 650mm
- Weight 78kg approx. (without batteries)
- V-Mini Solar Batteries - (Lithium) weight 2 x 13.5kg (approx. total 26kg)
- Solar Bracket Frame approx. 35kg, solar panels x 2 approx. 18kg each
- Total weight V-Mini Solar - approx. 175kg
- V-Mini Batteries (AGM)4 x 27kg. Total 108kg (total weight V-Mini approx. 257kg)
- Lifting handles to side elevations and fully adjustable legs for maximum levelling & stability
- Optional fully detachable wheels for manoeuvring into position (pair) and front stabiliser handlebar
- Option to install Spirafix ground anchor x 1 internally for additional hold
- Option to add quad solar panel arrangement for extended Winter use
- *V-Mini Solar Tower operation is sunlight dependent and may require additional methods of power support during Winter months (quad solar panel arrangement available)
*V-Mini Solar Tower can be remotely programmed to switch load off in the daytime during Winter months, to increase battery charging & performance.
Technical
- 4 x Hikvision Analytic Cameras (various) 4MP/ 8MP
- 4 x 256gb Micro SD Cards
- 4G Field Grade Router & High Gain Antenna (Dual Sim)
- Battery types dependent on solar/ mains systems
- Victron Solar Components
- Battery Charging System (12v)
- Programmable battery voltage notifications via email or solar portal
